Requirements
Hardware / Software
To connect the DC3500 fire alarm control panel to the MOSES SAZ02 voice alarm system, an Ethernet interface and a separate user license is required for each system (FACP + VA/PA).

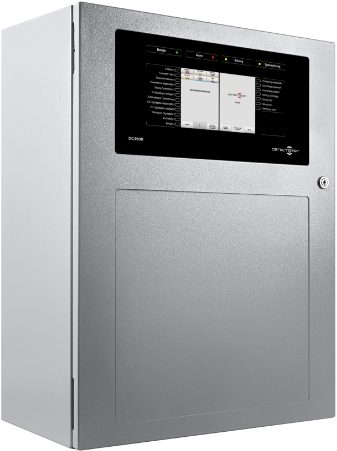

This function is supported by the DC3500 fire alarm control panel with 7” touch color display and the FACP operating system software from version V5.0.4.
Spotlight
System-wide information
via the voice alarm system
At the fire alarm control panel, which is connected directly to the MOSES system via the Ethernet connection, the detection zones from the entire fire network, including the associated additional texts, are summarised.
The relevant information from the fire alarm system is saved in a file and then imported into the simaxCONFIG programming software.
This means that, among other things, controls in the MOSES network can be activated easily and clearly. One example of this is the individual evacuation announcements of the voice alarm system in certain buildings or floors. Detection zones and customer texts of the fire alarm system are then available to the MOSES SAZ 02 via the imported file in the simaxCONFIG software and can be configured there.
Software Interface
File exchange via the easy export/import function.
The detection zones and customer data texts are read out from the fire alarm control panel in the DPT programming software and exported in the required JSON file format.

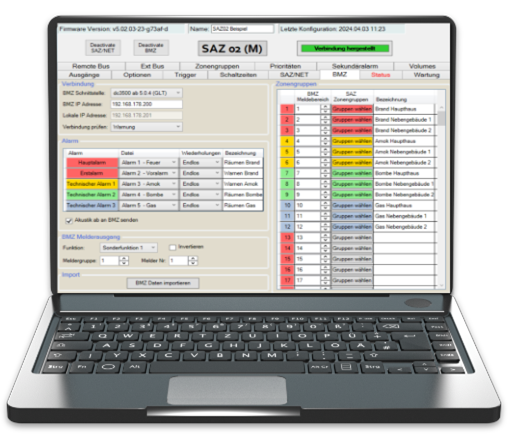

This JSON file can be read into the simaxCONFIG software and the necessary assignment/configuration can then be configured.
1
Fire alarm control panel
DC3500 SL/ML
2
Read out the control panel data and export it in JSON file format with the
DPT Programming software
3
Import the JSON file and configure the SAA with the Software
simaxCONFIG.
4
Voice alarm system
(VA/PA)
MOSES
Products
Voice alarm (VA/PA)
DIN 14675 is the comprehensive standard for fire alarm systems. The corresponding project and planning phases are also defined here for voice alarm systems (VA/PA)
Specialist certification according to DIN 14675 is required for planning and designing a voice alarm system.
Voice alarm System MOSES
Modular and perfectly coordinated system components for diverse applications, individual system functions and high safety requirements. Connection to the Detectomat fire detection and fire alarm system with DC3500 SL/ML fire alarm control panel.
Modular System
- Max. 96 zones and 960 speaker lines per controller
- Audio DSP with real-time processing
- Built-in voice memory with up to 40 audio files
- 10 stereo music inputs controlled via call station
- ETH data interface with compatible Detectomat fire alarm control panels in conformity with the applicable standards
Digital call station system
- Modular call stations with display
- Option of redundant connection to controller
- Up to 210 freely programmable keys per call station
- Stereo music input for each call station
- DIN 14664-compliant fire brigade control panel for emergency microphone available
- Feedback reduction or delayed call output for each call station
