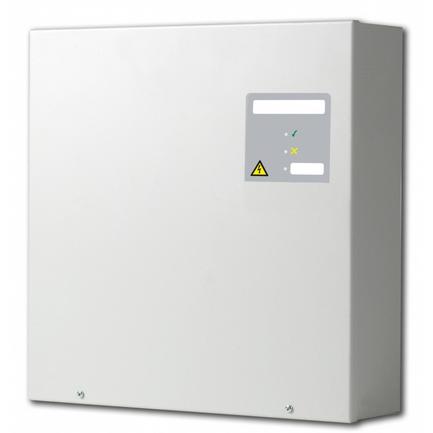

Primary pulsed power supply, 5 A, metal

Universal primary pulsed mains adapter for the use as an emergency power supply unit to supply 24 V DC with 5 A.
The device combines several functions: energy supply, battery charger and battery monitoring and meets all requirements of EN 54-4 + A1 + A2.
The power supply conforms to (EU) No. 305/2011 - Construction Products Regulation, the 2014/35 / EU - Low Voltage Directive and the 2014/30 / EU - EMC Directive.
In addition, it meets also the requirements of EN 50131-6 (type A, up to grade 4, environmental class II, additional sabotage protection required).

Art-Nr.: 33970 | BF562-5

documents

Additional information and downloads on our products and services are available in the protected website area. A one-time registration is necessary to receive the

A one-time registration is necessary to receive the personal login data .

Product Information
Technical Specifications
Certificates / Approvals

Product Information

Primary pulsed mains adapter with electronical overload function
Integrated deep discharge protection (end-of-discharge voltage at discharge current = 21.0 V DC at 0.1 x battery capacity)
Controlled output voltage 24 V DC
Intelligent battery management
Status LEDs for operation, fault (including display of the error type)
Protection against electric shock (personal protection) with additional plastic protection cover caps

Technical Specifications

Supply Voltage	230 V AC / 50 Hz
Output	Potential-free relay output for general fault with a switching capacity of 1 A at 30 V DC
Ambient Temperature	-5°C to +40°C
Humidity	max. 95 % (not condensing)
Protection Class	IP 30
Dimensions (H x W x D)	404 mm x 404 mm x 110 mm
Weight	5 kg without batteries
Material	Metal (enclosure and door)
Color	RAL 7035 light-grey with surface structure
Output Current	5 A depending on operation mode
Battery capacity	7 Ah to 17 Ah
DIN EN	EN 54-4, EN 50131-6
VdS-Approval	G 220016
