- 4-pole for all conductor modules suitable
- Exchange of modules is possible without signal interruption
- Maintenance free execution without integrated protective elements
- Mounting and earthing via 35 mm DIN rail according to EN 60715
- Connection via screw clamps up to 4 mm² cable diameter
Products fire alarm systems

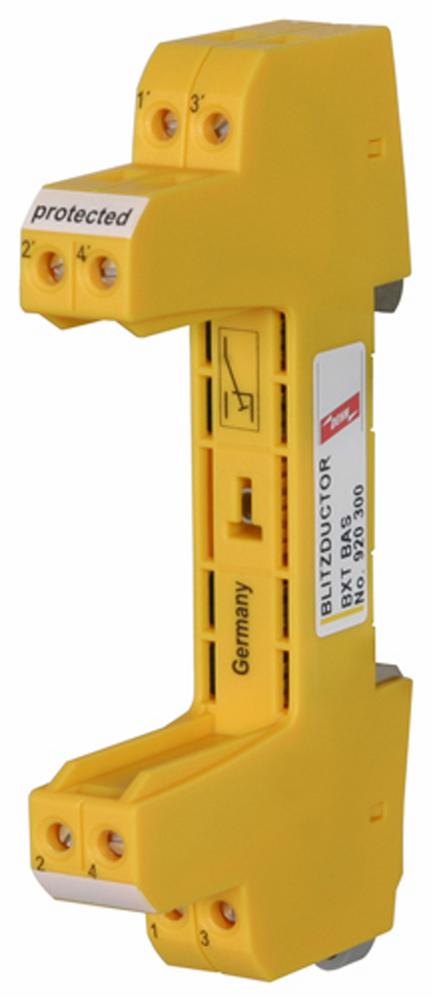

Overvoltage module range XT-Basic module
Space saving universal base for overvoltage modules without signal interruption for the placement of conductors. A secure earthing of the base is ensured via DIN rail mounting
Art-Nr.: 32495 | BXT BAS
documents
-
Additional information and downloads on our products and services are available in the protected website area. A one-time registration is necessary to receive the
A one-time registration is necessary to receive the personal login data .
Product Information
Technical Specifications
| Ambient Temperature | -40°C to +80°C |
| Protection Class | IP 20 |
| Dimensions (H x W x D) | 90 mm x 12 mm x 43 mm |
| Weight | 40 g |
| Material | Polyamid PA 6.6 |
| Color | yellow |
